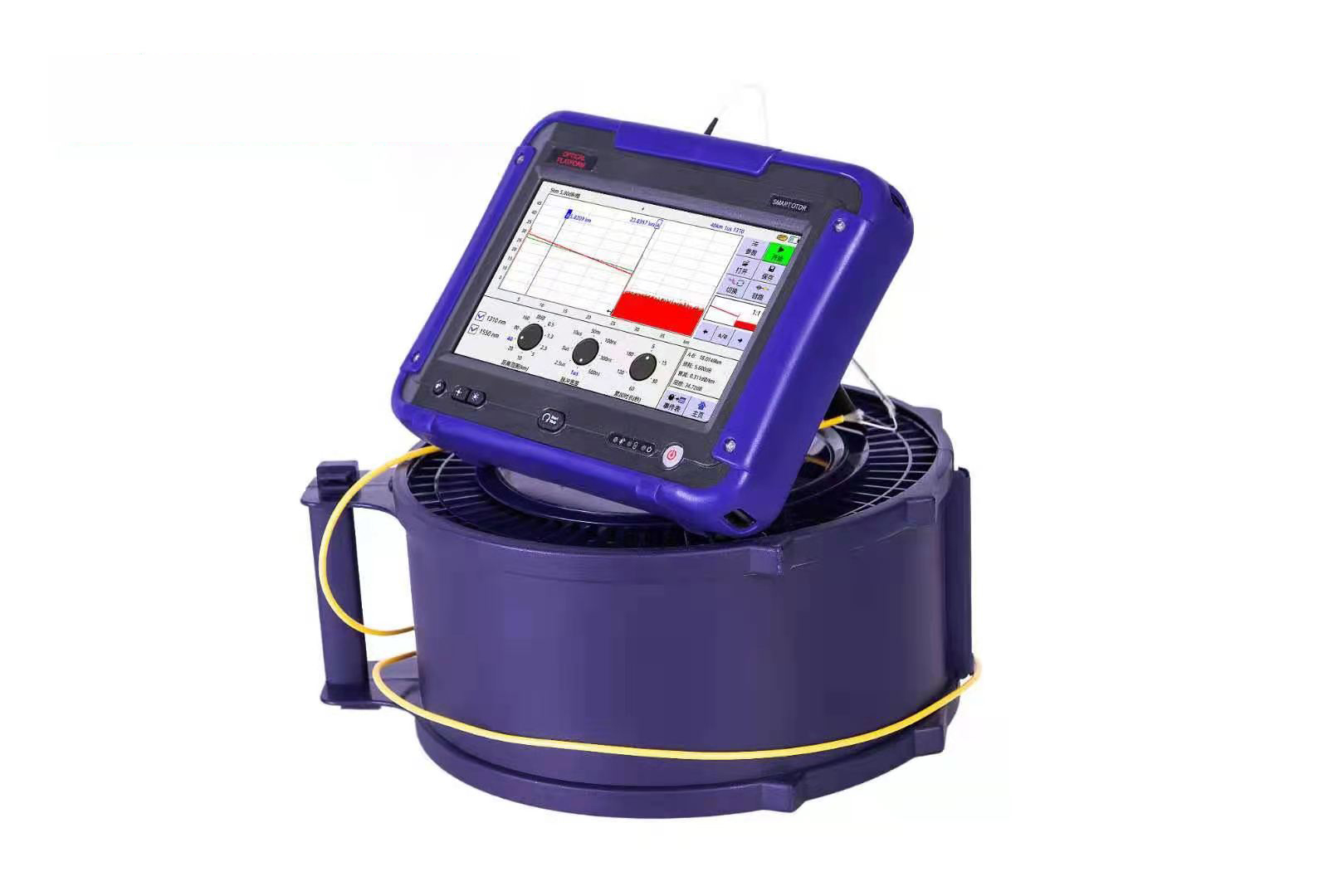

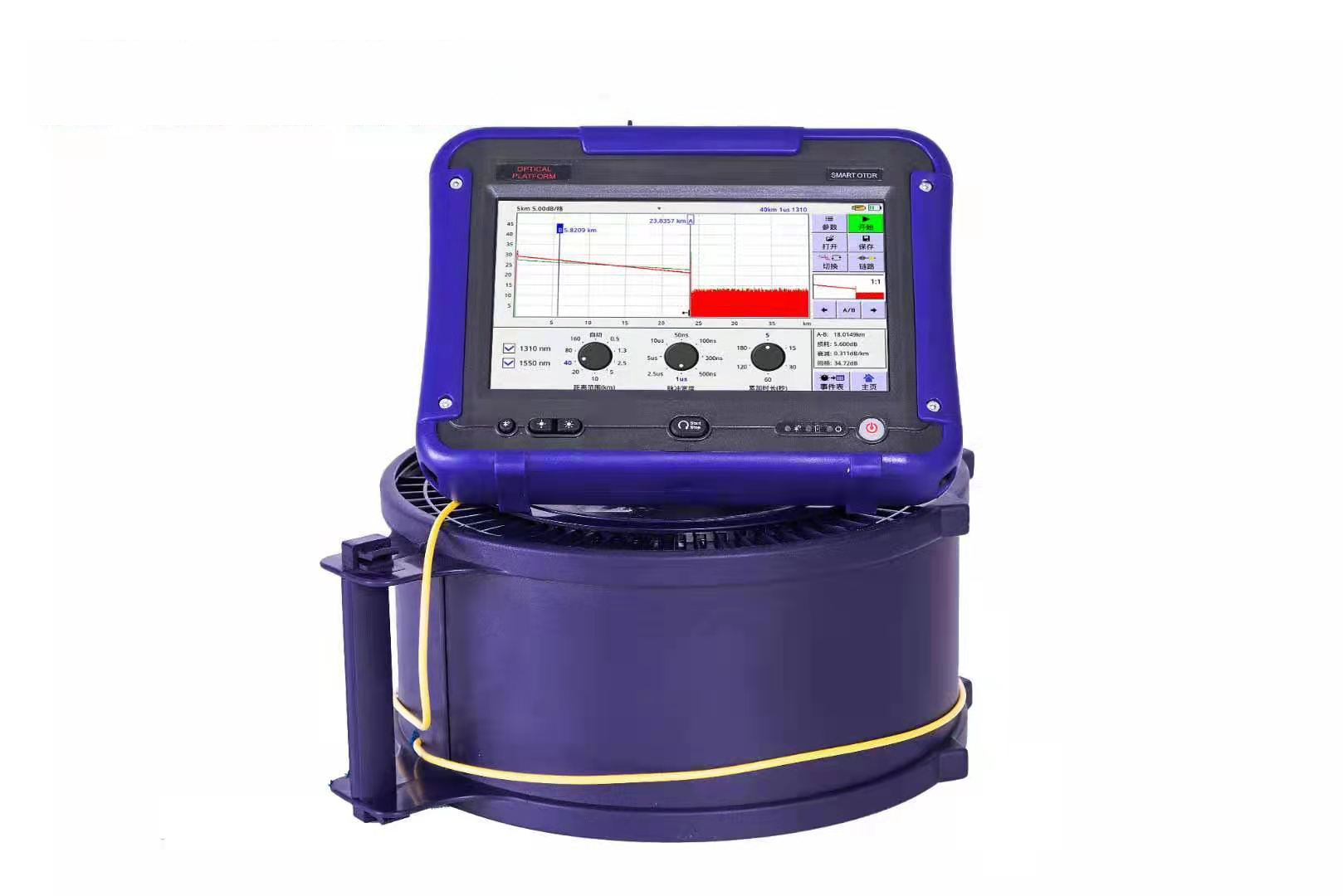

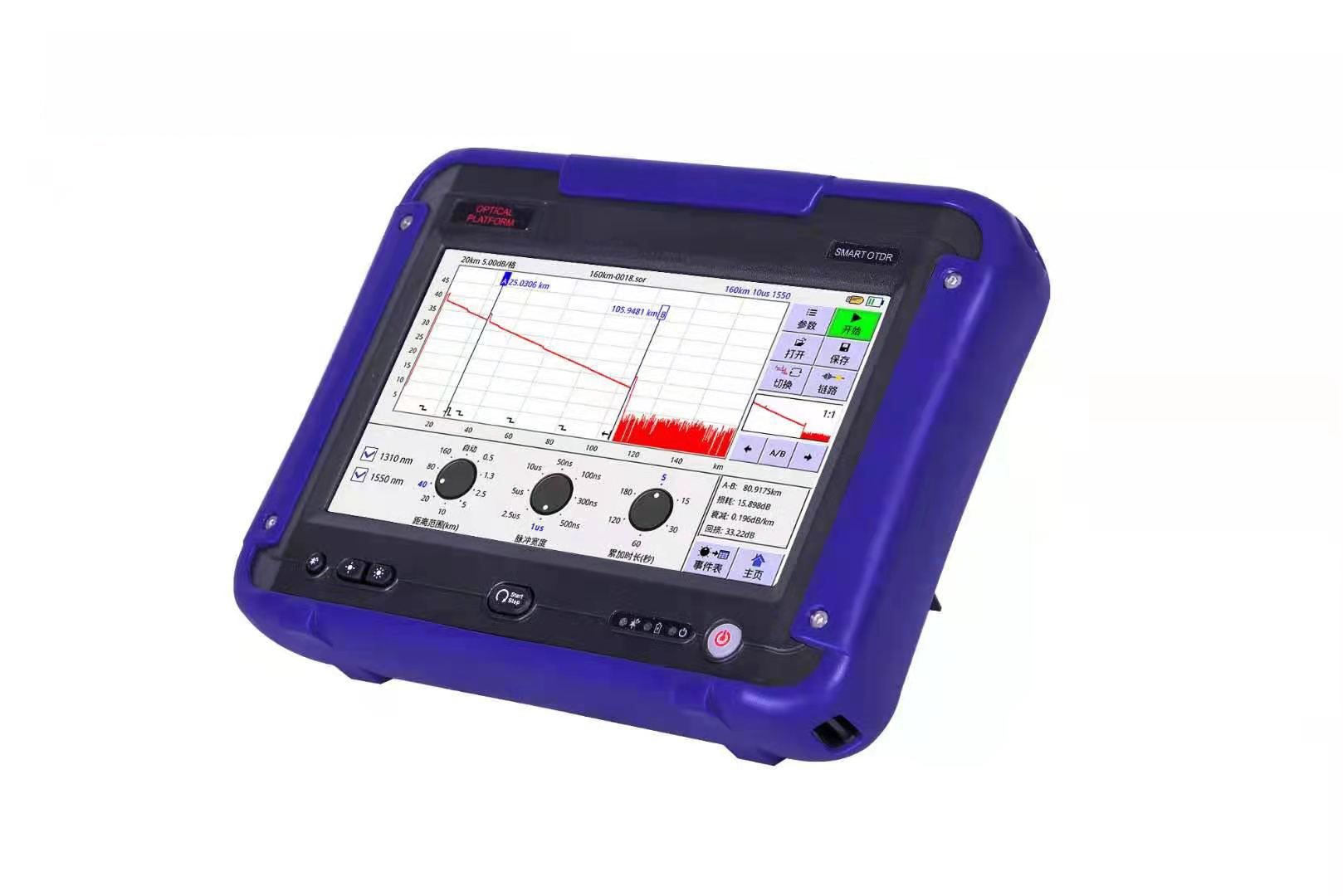

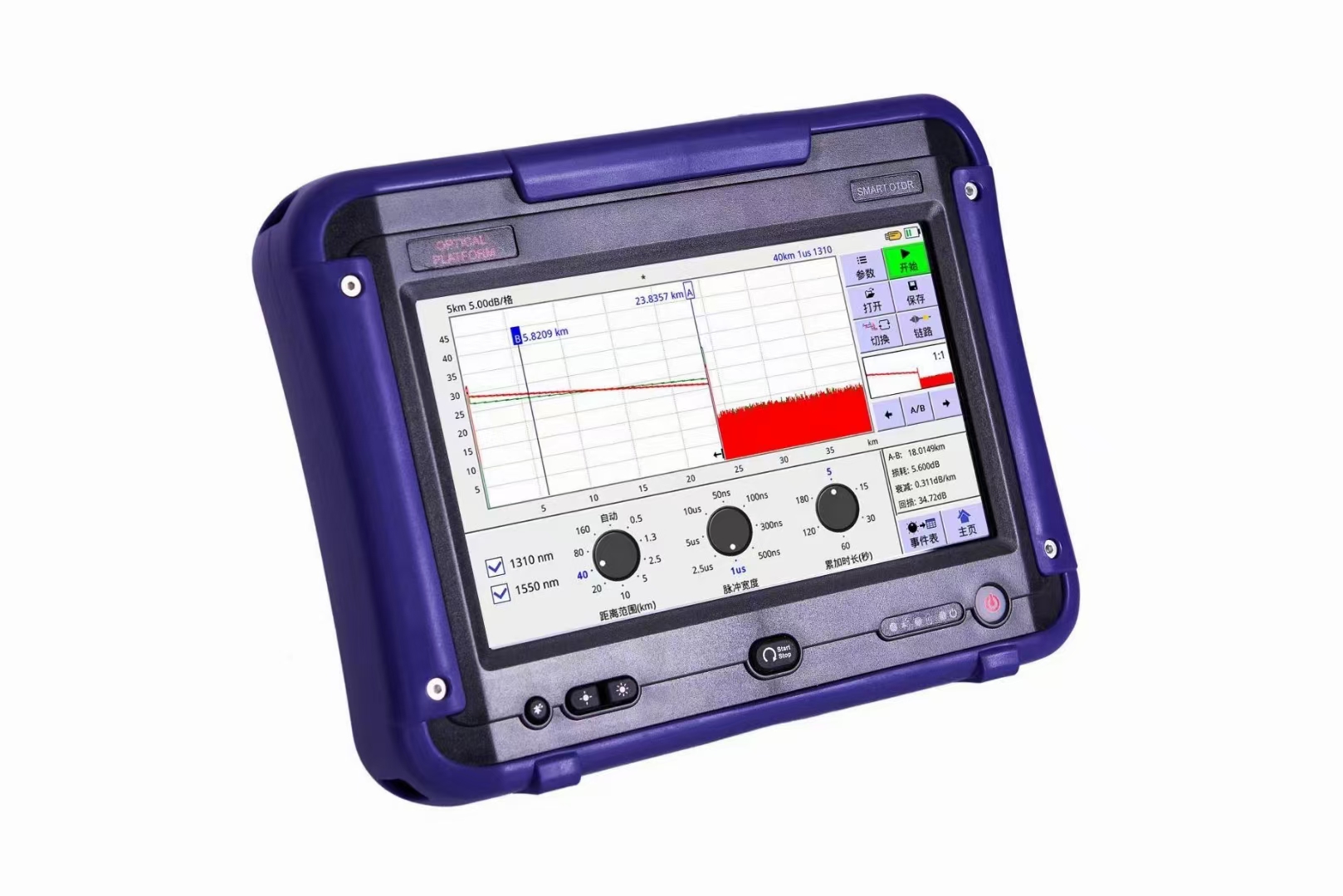

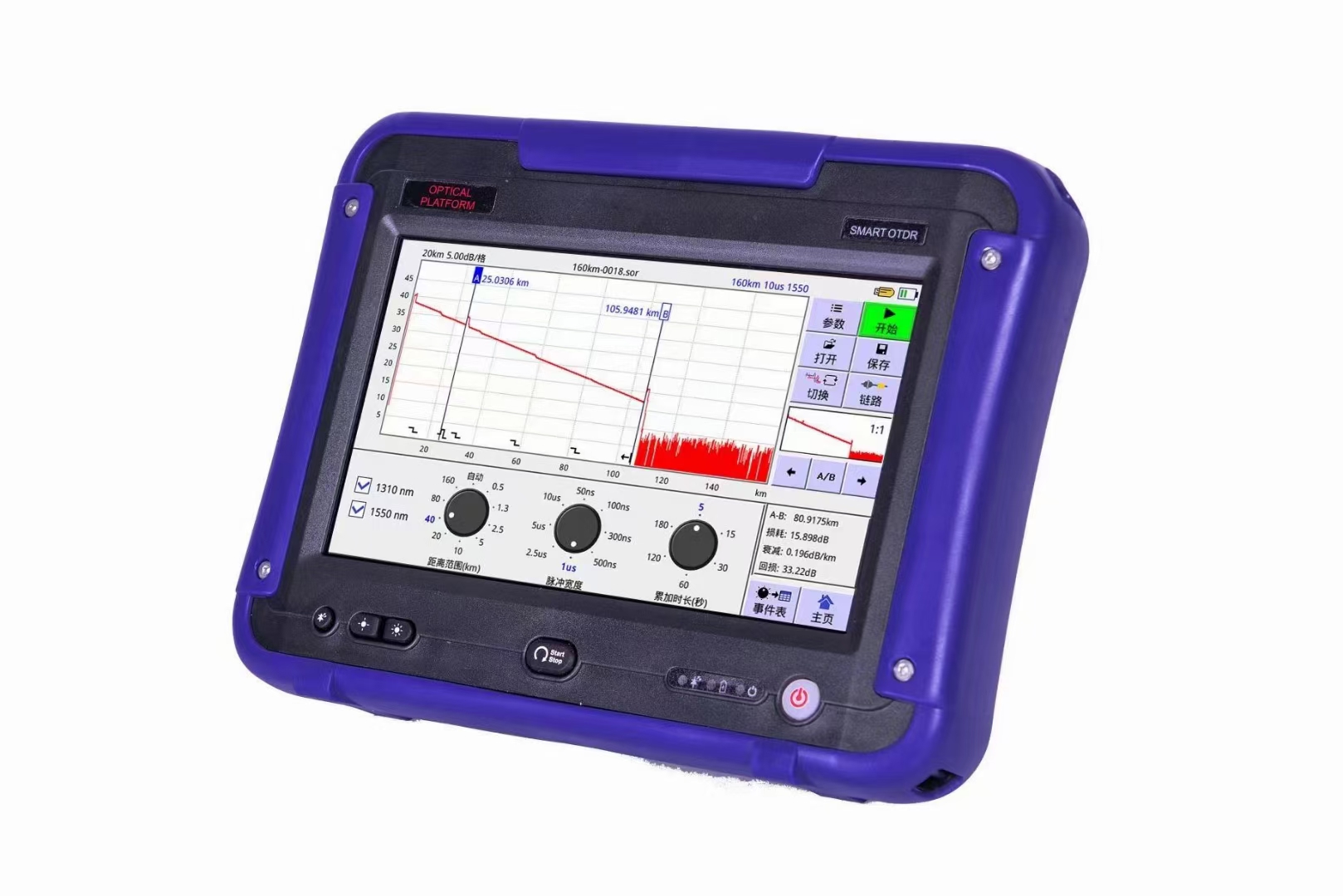

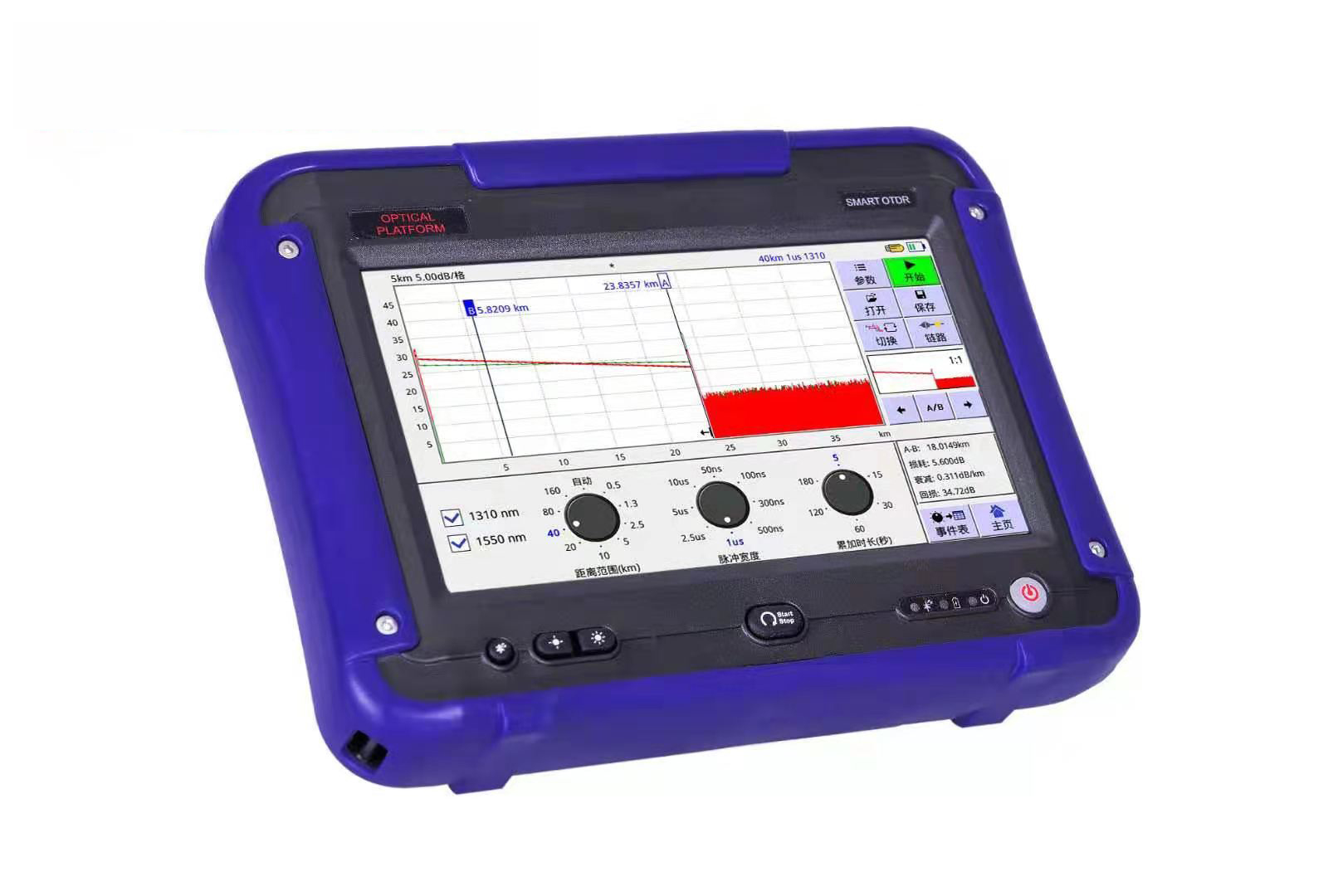

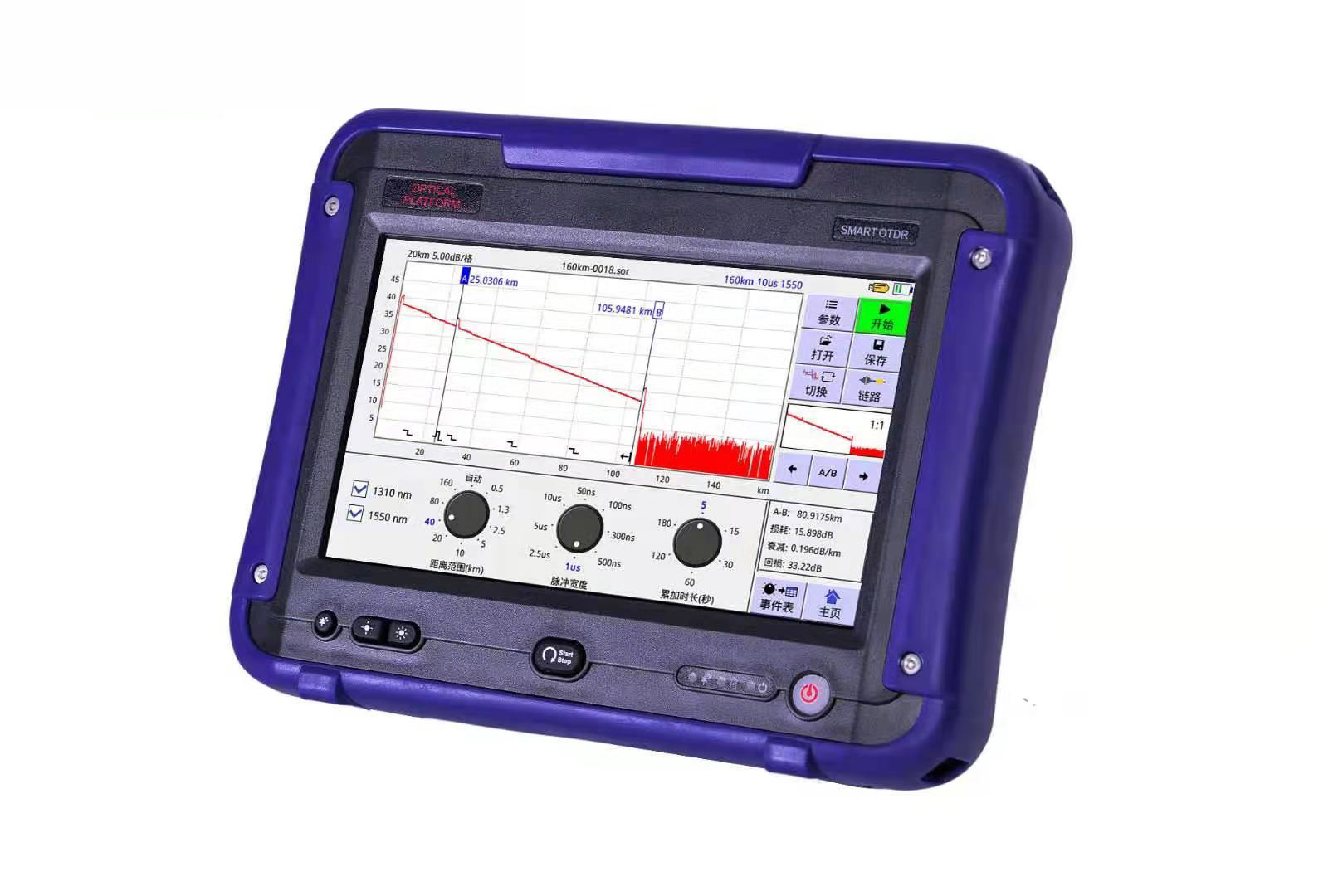

TO2102 series Fiber Optic Integrated Tester
--- Accurate· Fast,· Reliable · High performance-Price-Ratio
TO2102 series optical fiber comprehensive tester integrates optical time domain reflectometer, optical power meter (optional), light source (optional), and visual light source, which can test the performance characteristics of optical fiber physical layer. Among them, OTDR has excellent blind area and first-class dynamic range, and there are five models to choose from, which can better meet your specific OTDR test requirements. Combined with visual fault, it can guarantee the whole process fault detection of optical fiber.

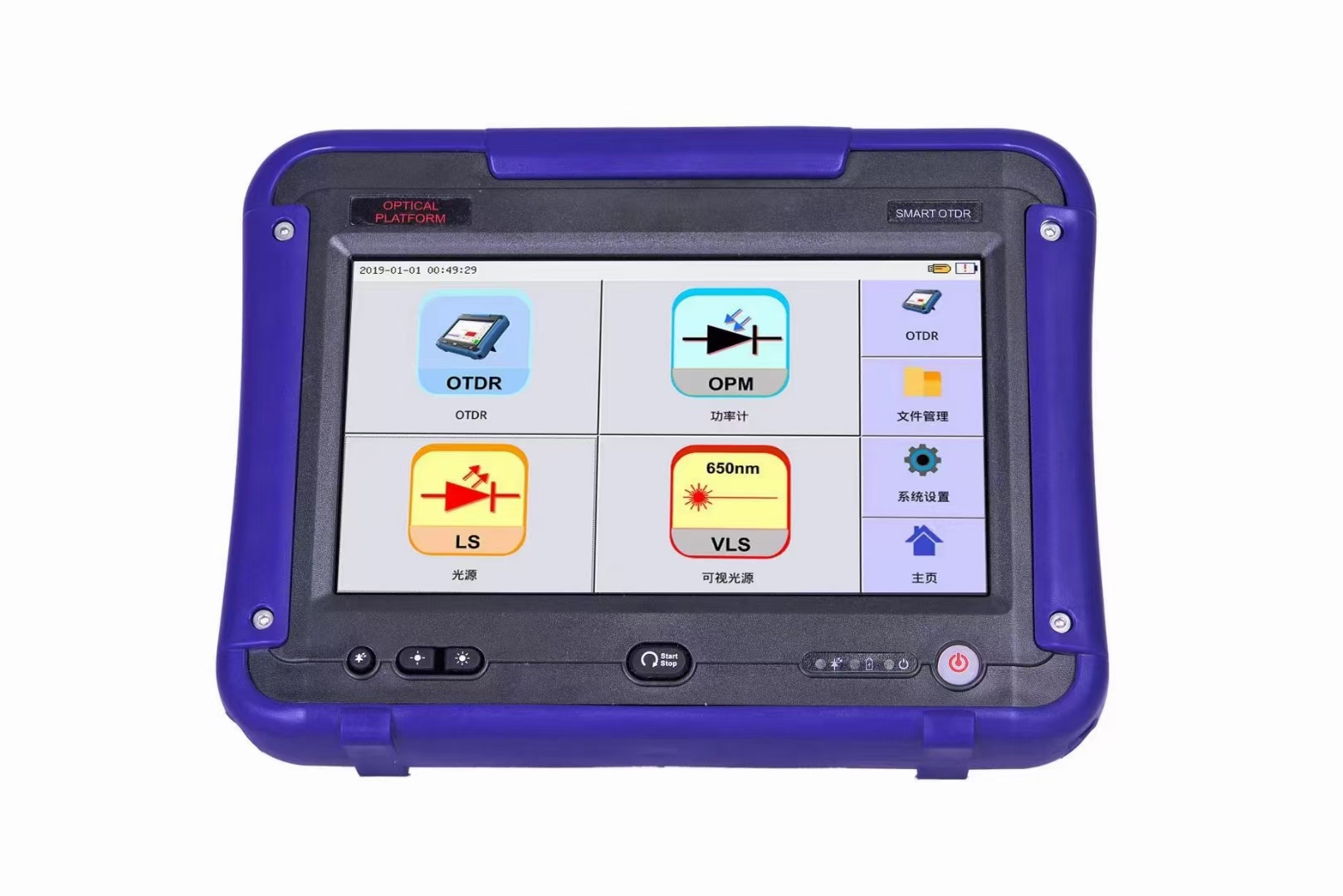

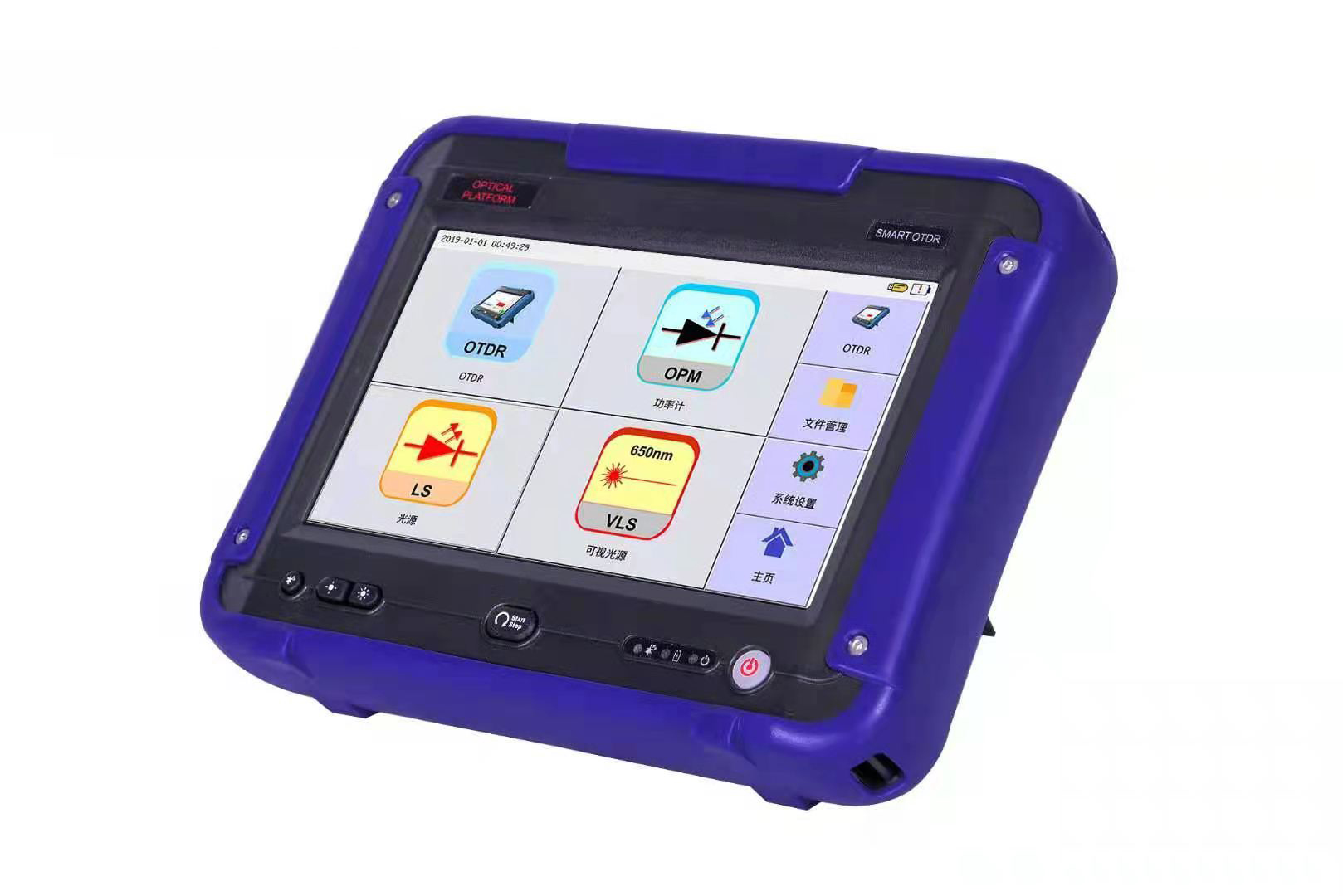

TO2102 series is an OTDR designed with reference to the operation mode of tablet computer and smart phone. It has a simple and lively operation interface, and is perfectly combined with 7-inch enhanced capacitive touch screen. It can provide unprecedented user experience without special training. It is small and light, easy to carry and durable, more suitable for outdoor environment.
Main features:
u Accurate, fast, reliable and easy to operate.
u The 7-inch outdoor enhanced capacitor touch screen provides a simple and clear block friendly operation interface, intelligent one key operation, instant opening and side opening.
u It fully supports the function of hand gesture to enlarge and reduce the test trace
u Optimization mode test of OTDR:
l --It provides high-speed test mode for network opening
l --It provides accurate test mode for network maintenance
u A variety of OTDR dynamic ranges and wavelength combinations are available
u The OTDR has dual wavelength test function, which can directly observe the macro bend point of optical cable
u A variety of test modes: average mode; real-time mode; real-time conversion average mode; average mode + real-time
u The OTDR has the function of line light alarm to protect optical devices to the maximum extent
u The OTDR has the function of optical module self-test, which can automatically detect the performance status of optical module
u The OTDR has Chinese and English input, friendly input interface, fully simulate the input mode of mobile phone, and support automatic saving function.
u It has the function of U disk folder establishment to ensure the classified storage of different optical cables
u The large capacity lithium battery has triple protection of over-current, over temperature and over-voltage, and the working time is more than 10 hours
u The external power interface has input high-voltage protection to prevent high-voltage input from burning the instrument.
u The storage space of super large capacity can be extended by connecting USB interface with USB disk to expand 160G storage space
u The remote instrument software can be upgrade
n Specifications
Ø TO2102 series
Models | TO2102-24② | TO2102-28② | TO2102-32② | TO2102-35② | TO2102-37② | TO2102-40② | TO2102-42② | ||
OTDR | |||||||||
Center wavelength（±20nm） | 1310/1550 | 1310/1550 | 1310/1550 | 1310/1550 | 1310/1550 | 1310/1550 | 1310/1550 | ||
Dynamic Range③(dB) | 24/22 | 28/26 | 32/30 | 35/33 | 37/35 | 40/38 | 42/40 | ||
Pulse width | 5ns、10ns、20ns、50ns、100ns、 300ns、1.0ms、 2.5ms、10ms、 20ms | ||||||||
Event Dead Zone④（m） | 2 | 1.5 | 0.8 | ||||||
Attenuation dead zone(m)⑤ | 10 | 5.5 | 4.5 | ||||||
Distance Range（Km） | 0.5至160 | 0.5至240 | |||||||
Distance Measurement Accuracy⑥ | ±(1m + sample space + measurement distance×0.005%) | ||||||||
Linearity | ±0.05dB/ dB | ||||||||
Memory capacity | 10000 | ||||||||
Fiber Type | SMF | ||||||||
Display | 7-inch capacitive touch screen | ||||||||
Capacitive touch screen | >10 million times | ||||||||
Optical connector | FC/SC/ST (universal connector) | ||||||||
VFL* | |||||||||
Center wavelength | 650nm±20 | ||||||||
Out power | <1dBm | ||||||||
Interface | FC/UPC | ||||||||
OPM（universal connector）⑧ | |||||||||
Models | A | B | |||||||
Detector Type | InGaAs | ||||||||
Wavelength range（nm） | 800∽1700 | 800∽1700 | |||||||
Detection range(dBm) | -60∽+16 | -50∽+26 | |||||||
Calibration wavelength (nm)) | 850、980、1300、1310、1490、1550、1625 | ||||||||
Linearity | ±5% | ||||||||
Interface | FC、SC、LC、ST（universal connector) | ||||||||
LS（universal connector）⑦⑧ | |||||||||
Center wavelength（nm） | 1310/1550 | ||||||||
Out Power(dBm) | ≥-7 | ||||||||
Other | |||||||||
Battery | Lithium battery | ||||||||
Continuous working time * | >10 Hours（From Bellcore TR-NWT-001138） | ||||||||
Dimensions | 210mm×160mm×45mm | ||||||||
Weight | 0.98Kg | ||||||||
Remarks: ① unless otherwise specified, all specifications are valid for 23 ° C ± 2 ° C (73.4 ° f ± 3.8 ° f) temperature range with FC / PC connector. ② General configuration ③ Typical dynamic range of the longest pulse and three minute average at SNR = 1. ④ Using 10ns pulse, the single-mode reflectivity is lower than the typical blind area of – 50dB. ⑤ Using 10ns pulses, the single-mode reflectivity is below the typical blind zone of – 50 dB. ⑥ The uncertainty due to the refractive index of the fiber is not included. ⑦ It has the same interface with OTDR (8) the optical power meter is integrated with the light source.
Ordering information:
Main frame：TO2102 Fiber Optic Integrated Tester
Standard accessories：
Name | NO. | |
Accessories | AC/DC adapter | 1 |
4G USB flash disk | 1 | |
Calibration certification | 1 | |
Quick user manual | 1 | |
FC Optical connector | 2 |
